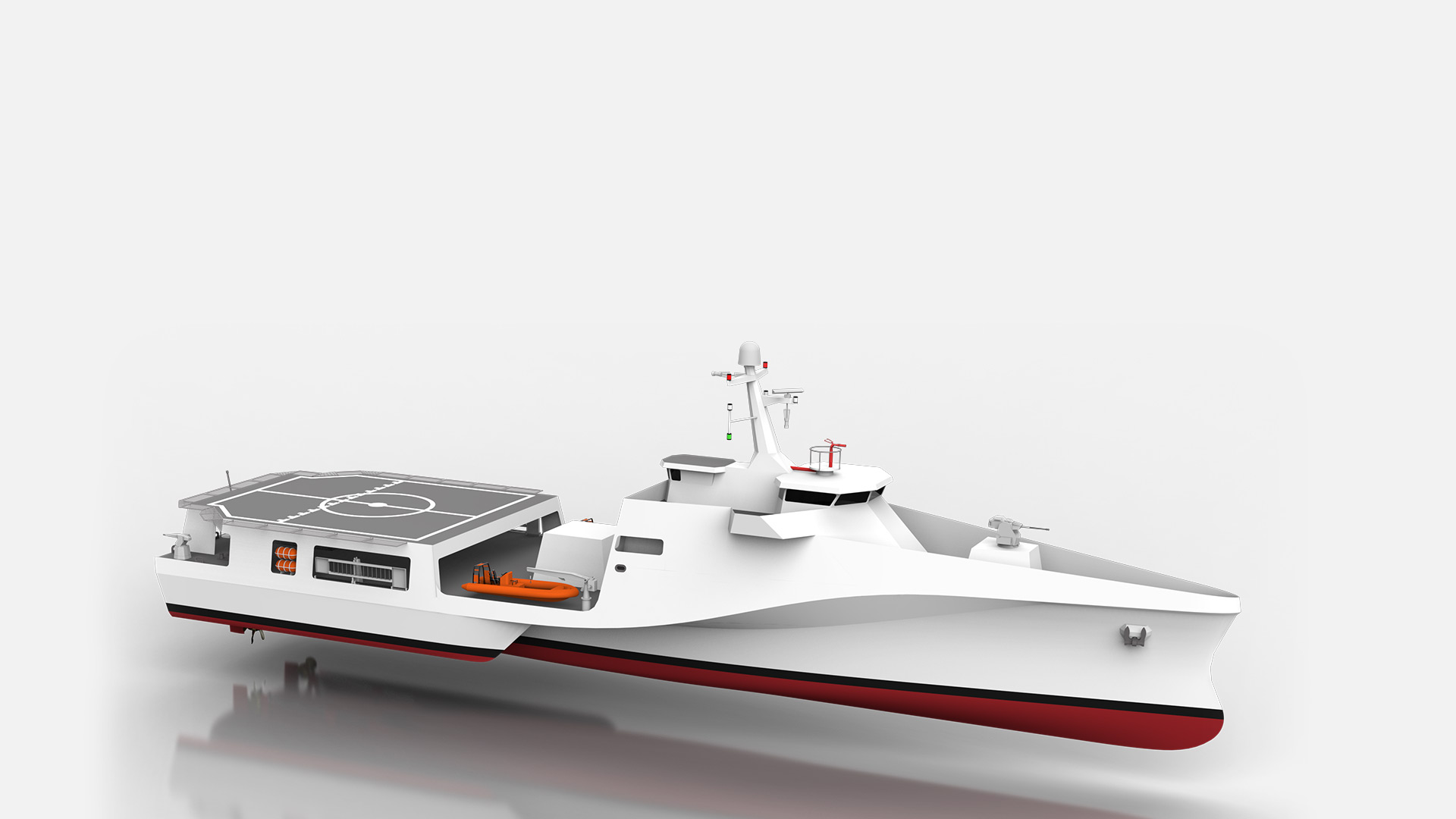

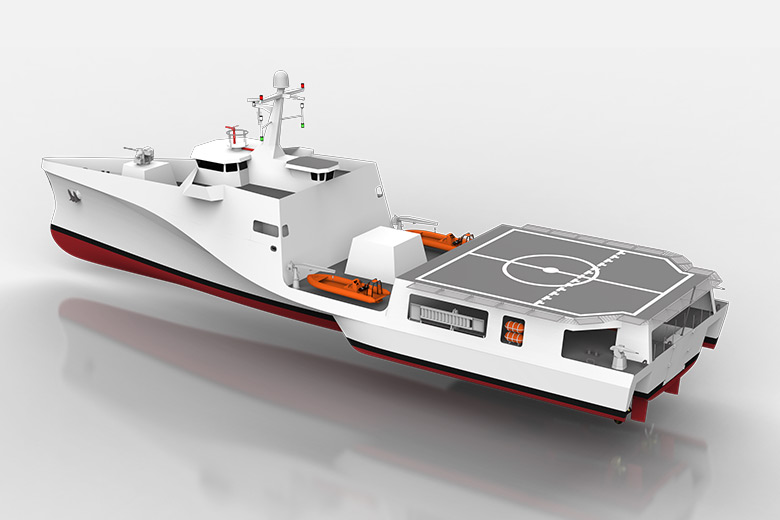

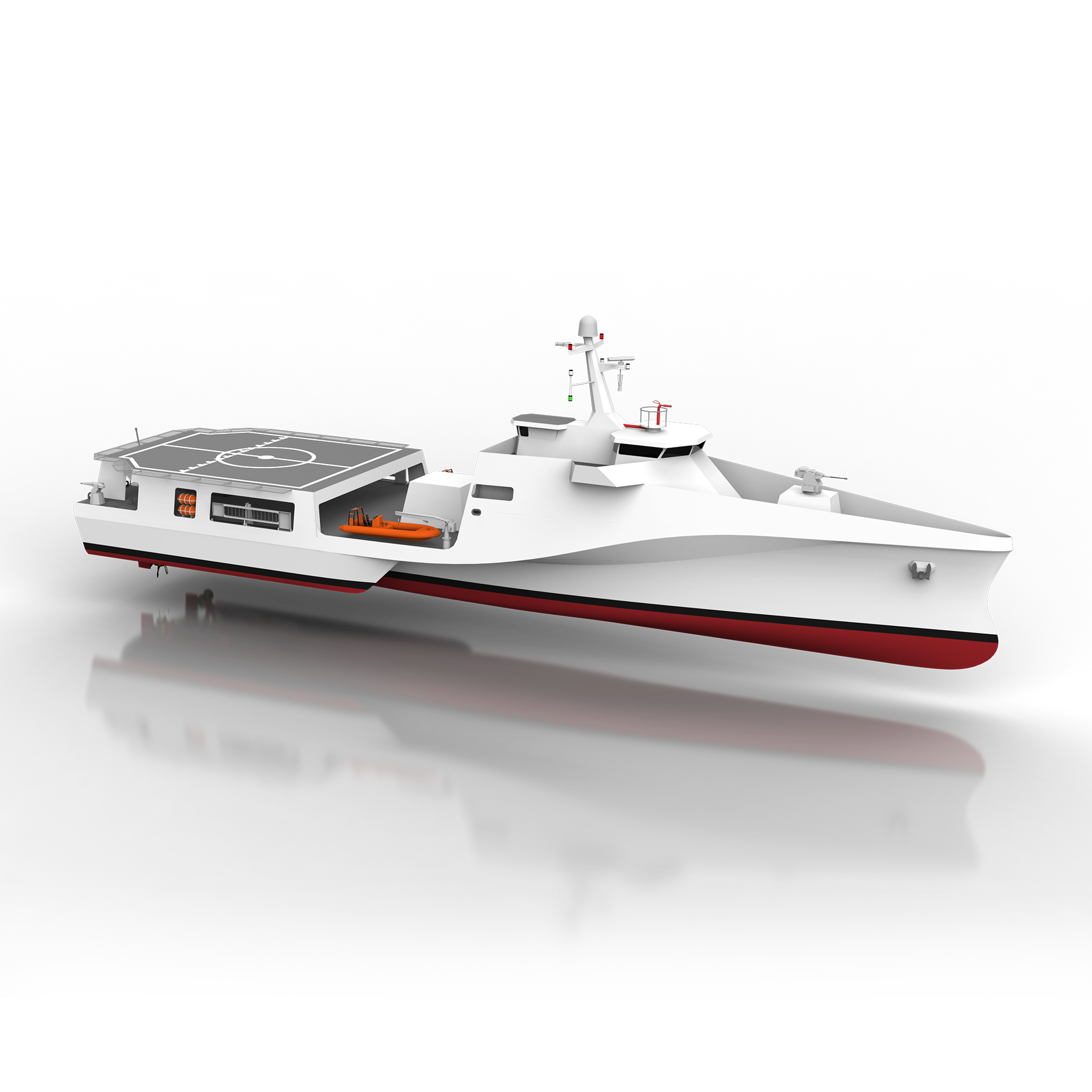

KM-TRIPV700 Trimaran Offshore Patrol Vessel

Superb seakeeping at higher sea states. Safer flight operations. Ideal platform for small unmanned vessels.

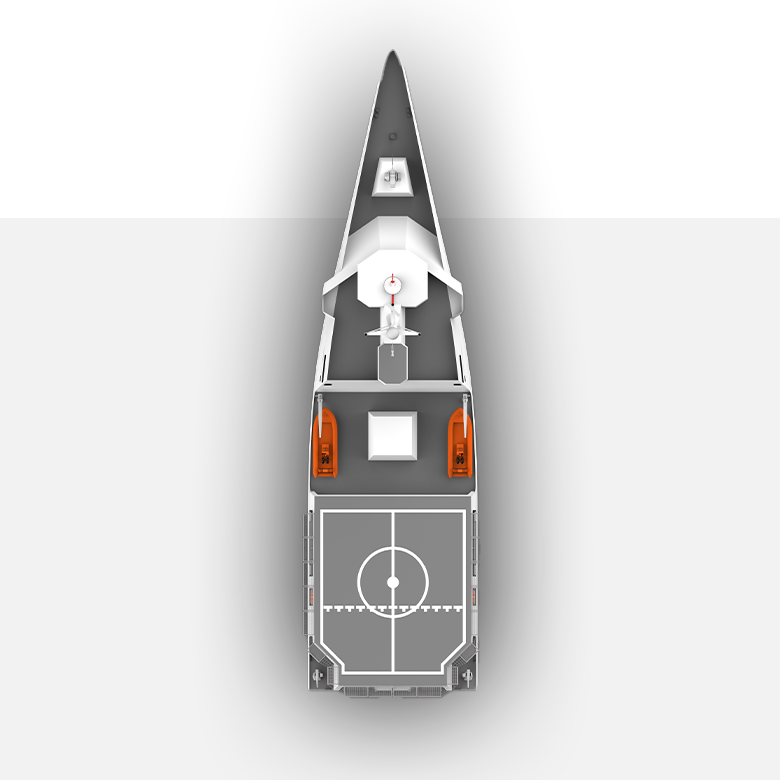

KM TRIPV700 is a trimaran OPV designed for superior seakeeping performance for increased operability. It facilitates a wider, larger and safer flight deck area for a 10-ton helicopter. The combined capabilities of the KM-TRIPV700 and the 10-ton helicopter provide increased SAR mission operability in high sea states. The Ship’s wide weatherdeck also provides an ideal area for configuring a variety of RHIB and USV arrangements.

Main Characteristics

Specification

Value

Overall Length
66 m
Beam
17.4 m
Displacement
700 Tons
Cruise Speed
15 Knots
Max Speed
24 Knots
Range @ 15 knots
2.000 NM

Propulsion & Power

System

Details

Main Propulsion & Maneuvering
2 x 4300 kW Diesel Engine 2 x Shafts&FPPs
Power Generation
3 x 180 kWe Diesel Generator

Crew Capacity

5 Officers
18 Petty Officers
18 Ratings

Weapons

1x30 mm Gun
2x12.7 Stabilized Machine Gun

Deck Systems

1x Platform for 10 ton Helicopter
2x7 m RHIB (Stern Ramp)
2x5 m RHIB (Deck) or
2x Portable 20 Foot Container Modules
2x Rescue Ladder
