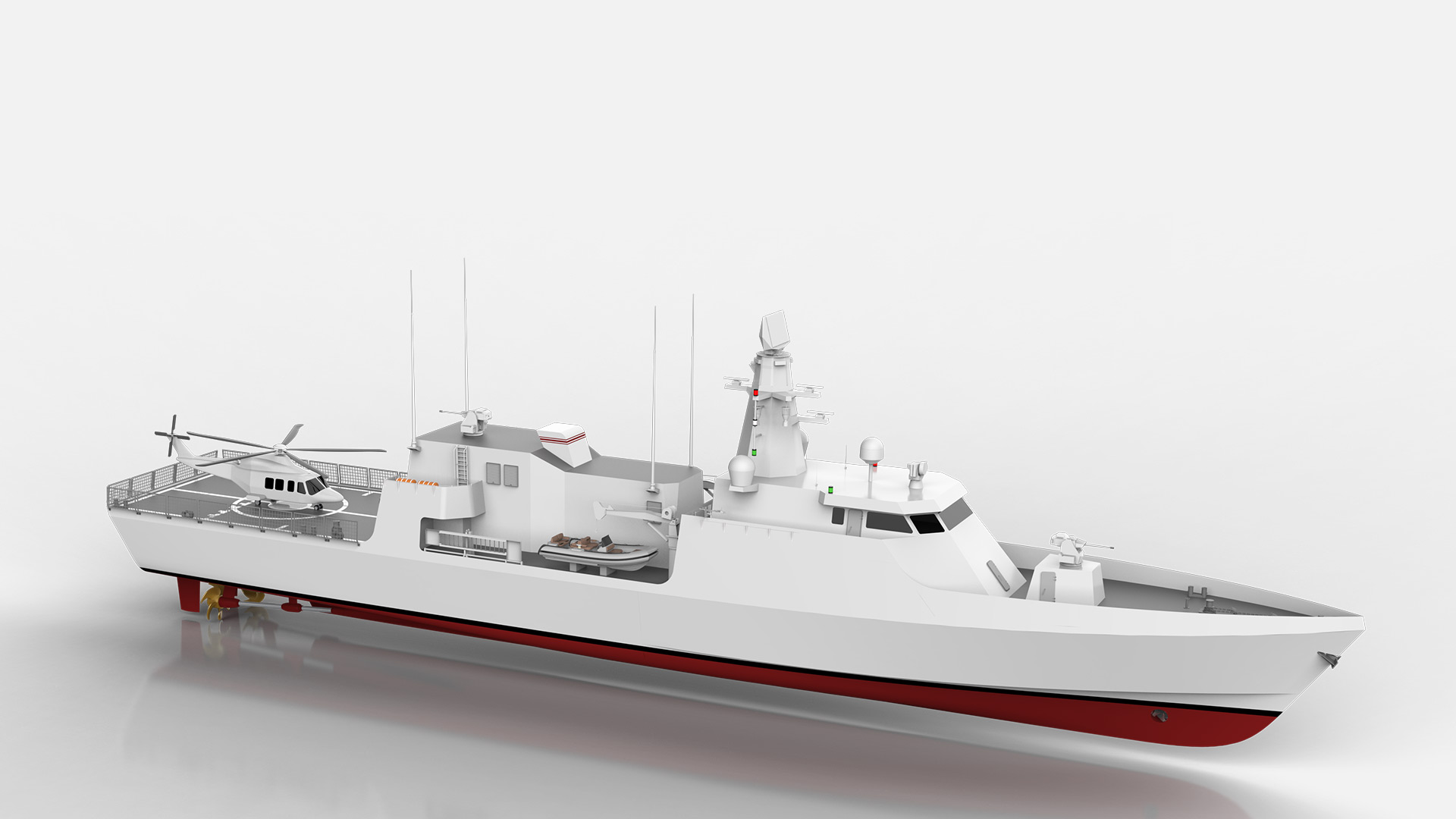

KM-OPV76H Offsore Patrol Vessel-Helo
Protector of Sovereignty On Territorial Waters and EEZ. Organic helicopter and small crafts. Extended Force Projection.
KM-OPV76H is designed for a medium-sized (6.5 ton) organic helicopter, two 7-meter RHIBs, and accommodating up to 20 guests. These capabilities enable operations for enforcing law in territorial waters and EEZ when deployed with marines. Alternatively, the same capabilities may be used for long-range SAR missions and survivor accommodation.
Main Characteristics
Specification
Value
Overall Length
76 m
Beam
12 m
Displacement
900 Tons
Cruise Speed
15 Knots
Max Speed
28 Knots
Range @ 15 knots
1.000 NM
Propulsion & Power
System
Details
Main Propulsion & Maneuvering
2 x 7400 kW Diesel Engine
2 x CPP
Power Generation
2 x 400 kW Generator
1 x 150 kW Emergency Generator
Crew Capacity
9 Officers
14 Petty Officers
18 Ratings
20 Guests
Electronics
Aerial Surveillance Radar
Fire Control Radar
X-Band & S-Band Radar
Weapons
1 x 30 mm Remotely Operated Stabilized Gun
1 x 20 mm Remotely Operated Stabilized Gun
2 x 12.7 mm Machine Guns
Deck Systems
Platform & Hangar For 6.5 T Helicopter (AW-139)
2 X 7 m RHIB
