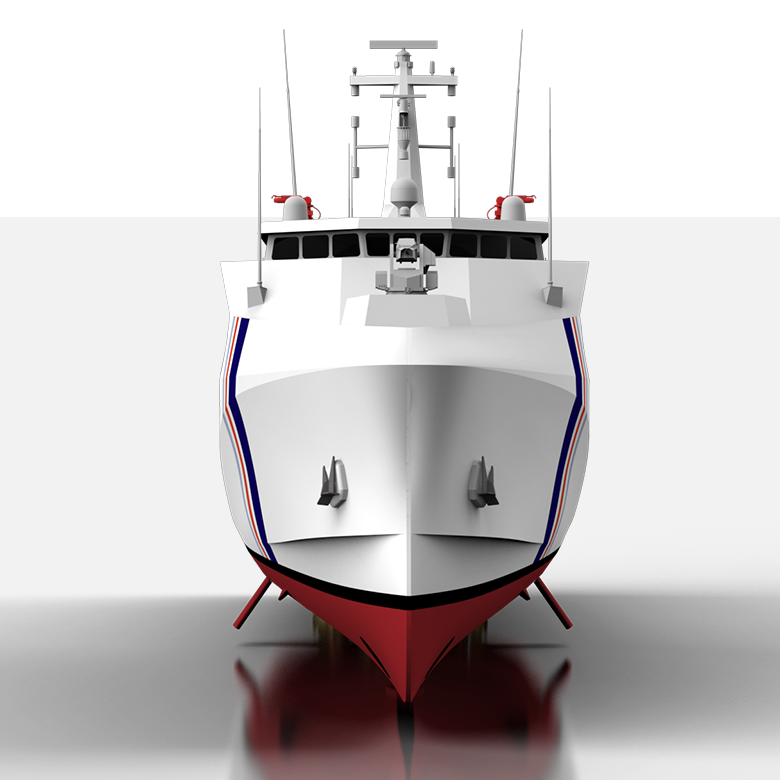

KM-OPV74 Offshore Patrol Vessel-74 M

Configurable organic surface and aerial assets. Superior seekeping. Flexibility at a wide range of speeds.

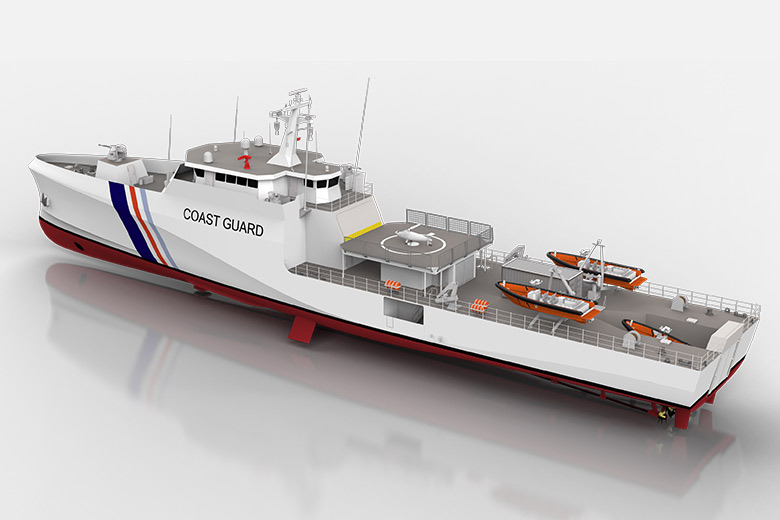

KM-OPV74 is a 1000-ton platform designed for deploying small surface and aerial vehicles for an increased coverage and rapid intervention. Its large weatherdeck may be configured for alternative small boats and unmanned surface vessels and containerized modular systems/capabilites. A medium size flight deck and a small hangar allow integration of various unmanned aerial vehicle types. The ship is a perfect SAR platform with its rescue decks close to waterline and accommodations for 20 survivors. It has a hull form with superior seakeeping performance, that enables operations at higher sea states.

Main Characteristics

Specification

Value

Overall Length
73.8
Beam
12 m
Displacement
1.000 Tons
Cruise Speed
15 Knots
Max Speed
22 Knots
Range @ 15 knots
2.500 NM

Propulsion & Power

System

Details

Main Propulsion & Maneuvering
4 x 2000 kW Diesel Engine 4 x FPPs Bow Truster Fin Stabilizer
Power Generation
3 x 500 kW Generator

Crew Capacity

12 Officers
24 Petty Officers
24 Ratings
20 Guests & Survivors

Electronics

Navigation Radar
GPS

Weapons

1 x 30 mm Main Gun
2 x 12.7 mm Gun

Deck Systems

Platform & Hangar For UAV
3 x RHIB
Stern Door & Ramp
2 x A-Frame Davit
2 x FiFi Monitor
1 x Mission Container
1xROV
