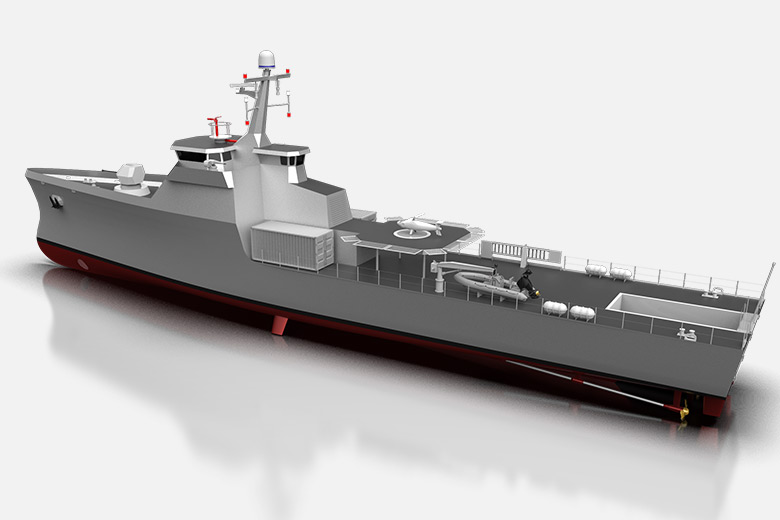

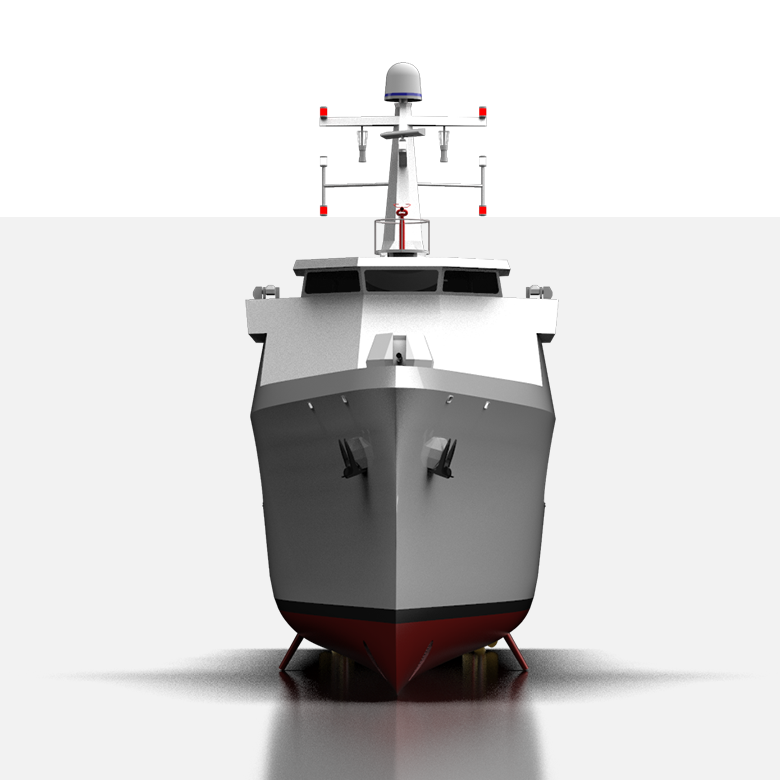

KM-OPV66 Offshore Patrol Vessel-66 M

Reconfigurability with mission modules. Compact suit of surface and aerial assets. Economic solution for various OPV missions.

KM-OPV66 is a small, economic but capable solution for coastal and offshore patrolling. It comes with a suit of surface and aerial assets that increase its range of effectiveness. The deck can accommodate two containerized mission modules that can be configured according to the operational needs. Its reserve accommodations allow for safe haven for survivors.

Main Characteristics

Specification

Value

Overall Length
65.9 m
Beam
10.4 m
Displacement
600 Tons
Cruise Speed
18 Knots
Max Speed
28 Knots
Range @ 18 knots
1.000 NM

Propulsion & Power

System

Details

Main Propulsion & Maneuvering
2x 4300 KW Diesels & FPPs
Power Generation
3 x 180 KWe Generator

Crew Capacity

5 Officers
16 Petty Officers
15 Ratings
16 Survivors

Electronics

Navigation Radar
GPS
Navigation & LPI Radar
Hull Mounted Sonar

Weapons

1 x 40 mm Gun
2 x 12.7 Stabilized Mach.Gun

Deck Systems

1x UAV (with hangar)
Stern Ramp with 7 m RHIB
1x 5 m RHIB (deck)
1x Rescue Ladder
2x Portable 20’ Mission Modules
