KM FR42TH 300 Pax H2-Hybrid Triferry
Less CO2 emissions with a hybrid power system to transport passengers!
KM-FR42TH is a variant of our KM-FR42T solution to offer a low-emission fast passenger ferry. This solution offers reduction of CO2 by 50% by trading-off 25% passenger capacity, while still benefitting the superior seakeeping performance of KM-42T. This variant has an electric propulsion system that generates 50% of the required power from fuel cells using hydrogen as the clean fuel.
Main Characteristics
Specification
Value
Overall Length
42.92 m
Beam
11.08 m
Displacement
200 Tons
Cruise Speed
20 Knots
Max Speed
24 Knots
Range @ 20 knots
500 NM
Propulsion & Power
System
Details
Main Propulsion & Maneuvering
2 x 1500 kW PM Motor
2 Shafts & FPPs
Power Generation
Hybrid Power Gen.
16 x 100 Kw Fuel Cells
2 x 700 Kw Diesel Generator
Crew Capacity
3 Crew
-
300 Passengers
Deck Systems

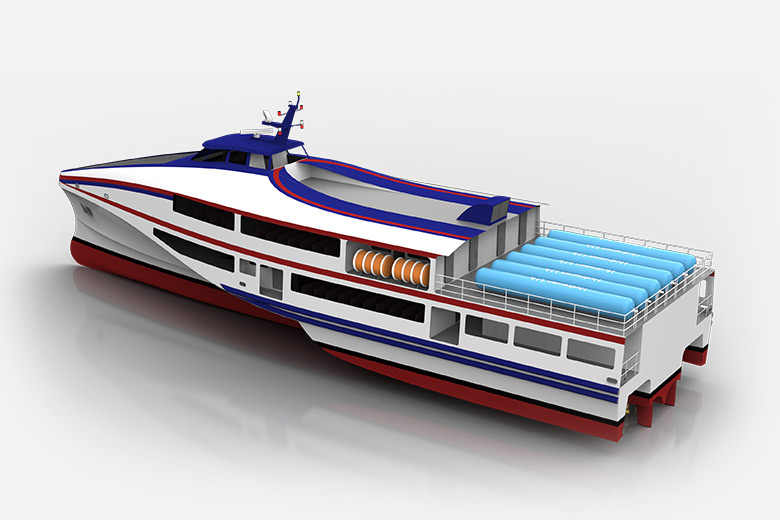

6x110 kg H2 Cylinders
1x Rescue Boat
