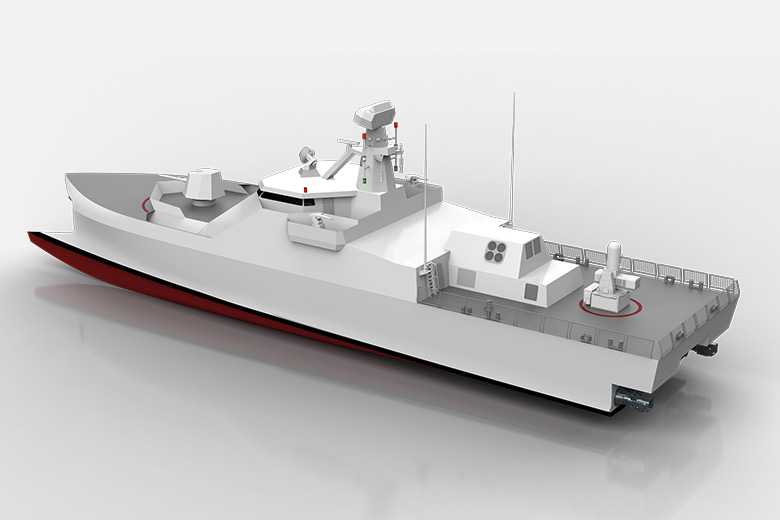

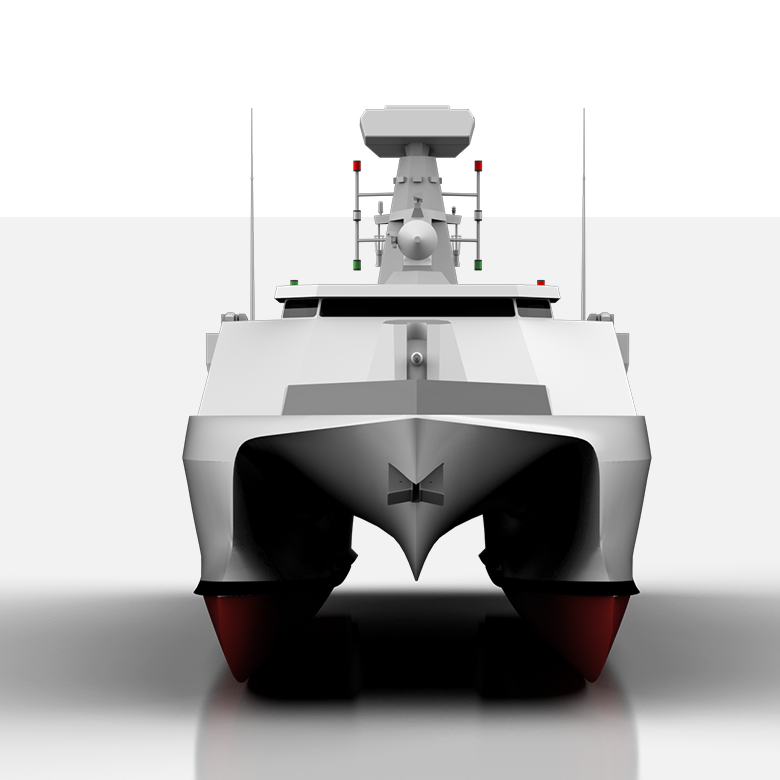

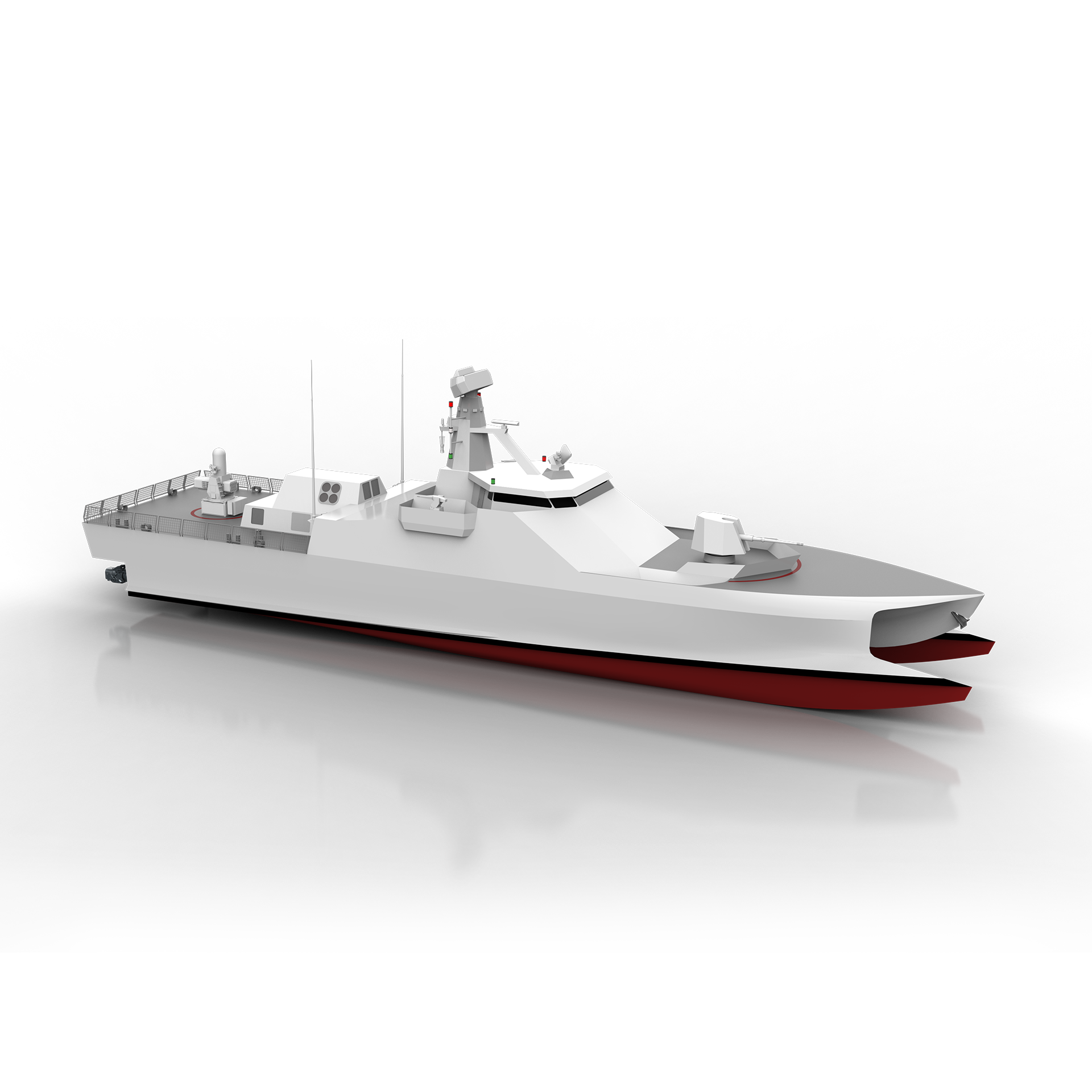

KM-FPB-CAT Fast Patrol Boat-Catamaran

Superb stability. Better seakeeping. Higher speeds at higher waves.

KM-FPB-CAT is based of a wavepiercing catamaran hull form to have a better roll damping and decreased pitch motion by cutting through waves. It presents a notable improvement in operability compared to that of conventional monohull fast patrol boats. Fitted with a combat system to respond air and surface threats, KM-FPBCAT62 buils up a formidable presence at naval operations zones.

Main Characteristics

Specification

Value

Overall Length
61.15 m
Beam
14.25 m
Displacement
515 Tons
Cruise Speed
25 Knots
Max Speed
45 Knots
Range @ 25 Knots
800 NM

Propulsion & Power

System

Details

Main Propulsion & Maneuvering
2 x 5900 kW Diesel Engines 2 x 4800 kW Gas Turbines 2 x Water Jet with Steerable Nozzle 2 x Booster Water Jet
Power Generation
3 x 185 kW Generator

Crew Capacity

7 Officers
12 Petty Officers
18 Ratings

Electronics

3D Search Radar
Fire Control Radar
LPI Radar

Weapons

1 x 76 mm Main Gun
1 x Point Defence Missile System (PDMS)
2 x 4 SSM System
2 x 12.7 mm Stabilized Gun
DECOY System

Deck Systems

1 X 5m RHIB
