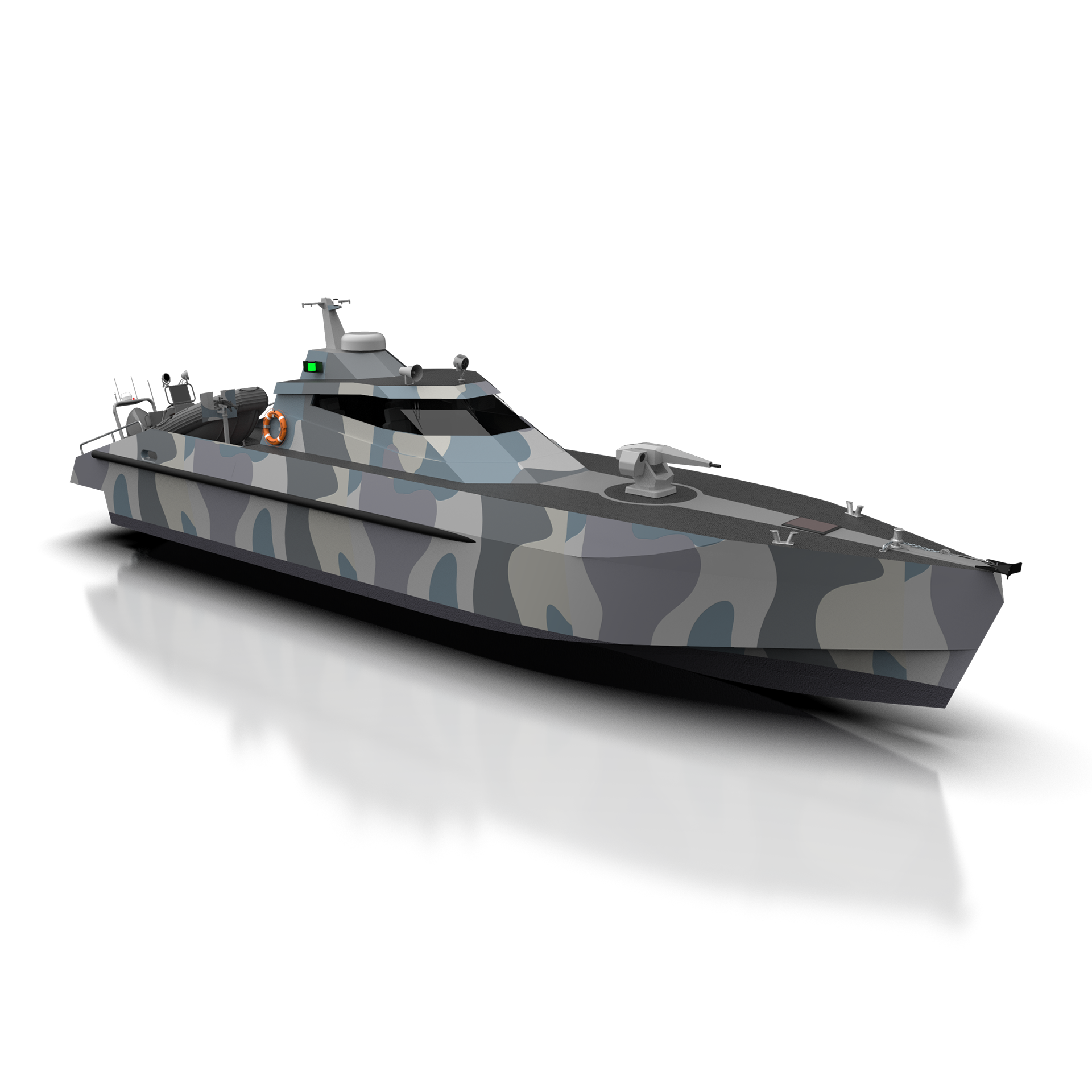

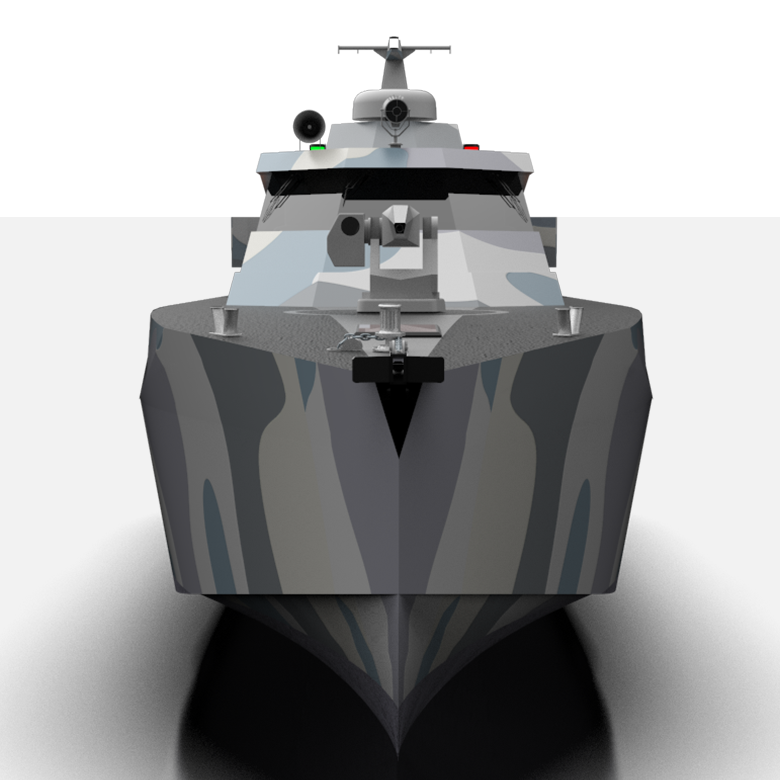

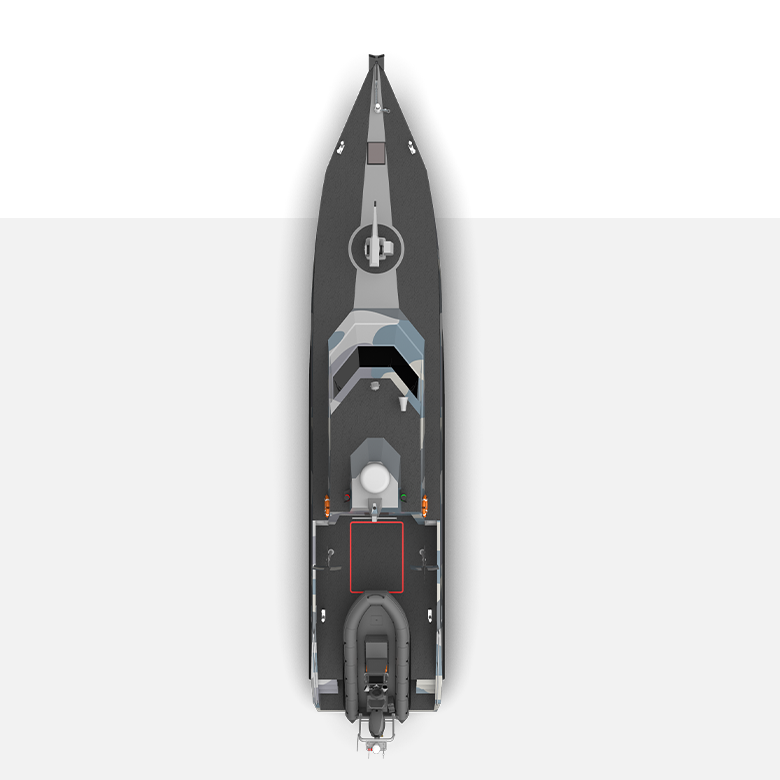

KM-FAC22 Fast Attack Craft-22M

Covert Insertion Platform — 45knot SOF Assault Craft

Purpose designed for special forces insertion, extraction, and littoral covert operations, the KMFAC22 combines low observable geometry and all aluminium construction to achieve 45knot transit speeds. Fitted with a remotely operated weapon system and an integrated stern boat ramp, the platform enables rapid deployment and recovery of SOF teams while minimizing detectability during approach and egress.

Main Characteristics

Specification

Value

Overall Length
22 m
Beam
4 m
Displacement
40 Tons
Cruise Speed
25 Knots
Max Speed
45 Knots
Range @ 25 knots
250 NM

Propulsion & Power

System

Details

Main Propulsion & Maneuvering
2 x 1440 kW Diesel Engine 2 x Water Jet with Directional Nozzle
Power Generation
2 x 70 kW Diesel Generator

Crew Capacity

2 Petty Officers
2 Ratings
--

Electronics

Navigation Radar
GPS
ECDIS
AIS
Magnetic and Satellite Compass
Speedlog
Echo Sounder
VHF & UHF Comm.
INMARSAT

Weapons

1 x 12.7 Stabilized Remote Controlled Mach. Gun

Deck Systems

1 x 5 m RHIB
