KM-F148 Air Defense Frigate
Multi-dimension Layered Defense. Fleet Protection and Command. Force Projection.

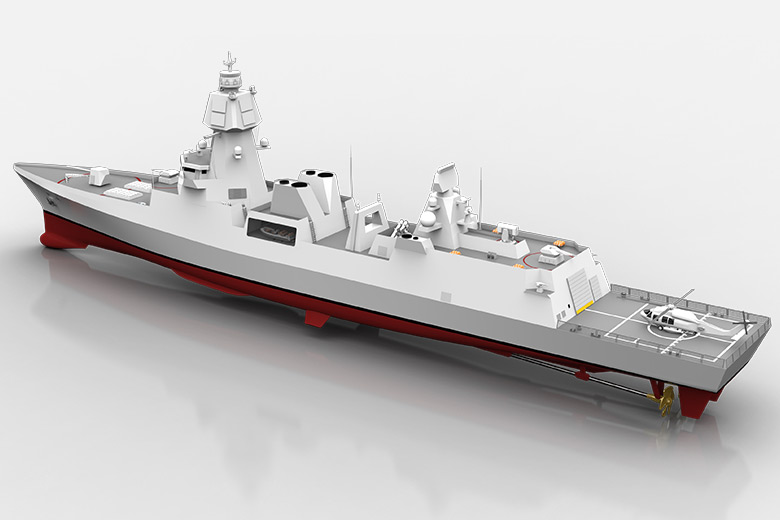

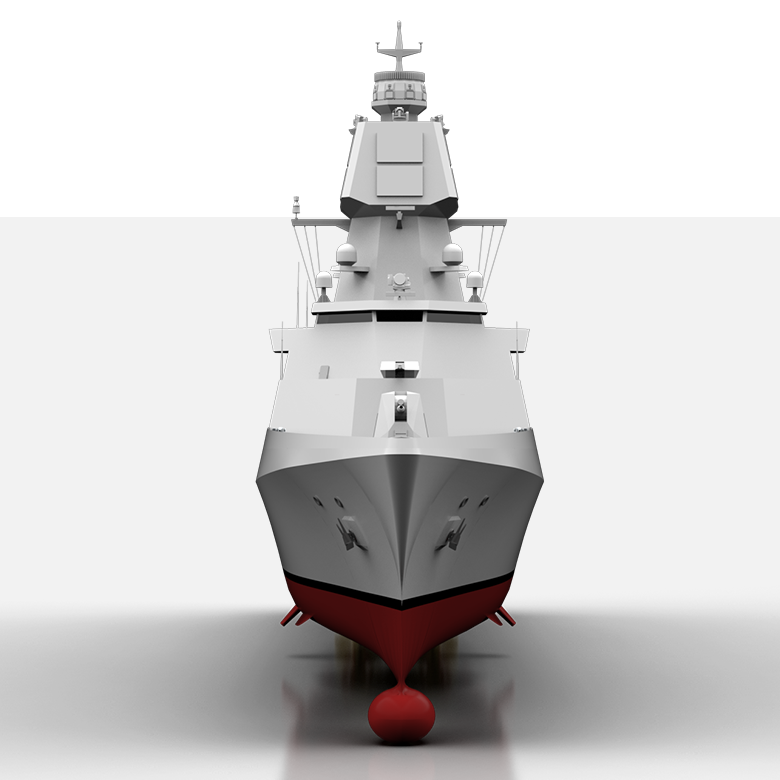

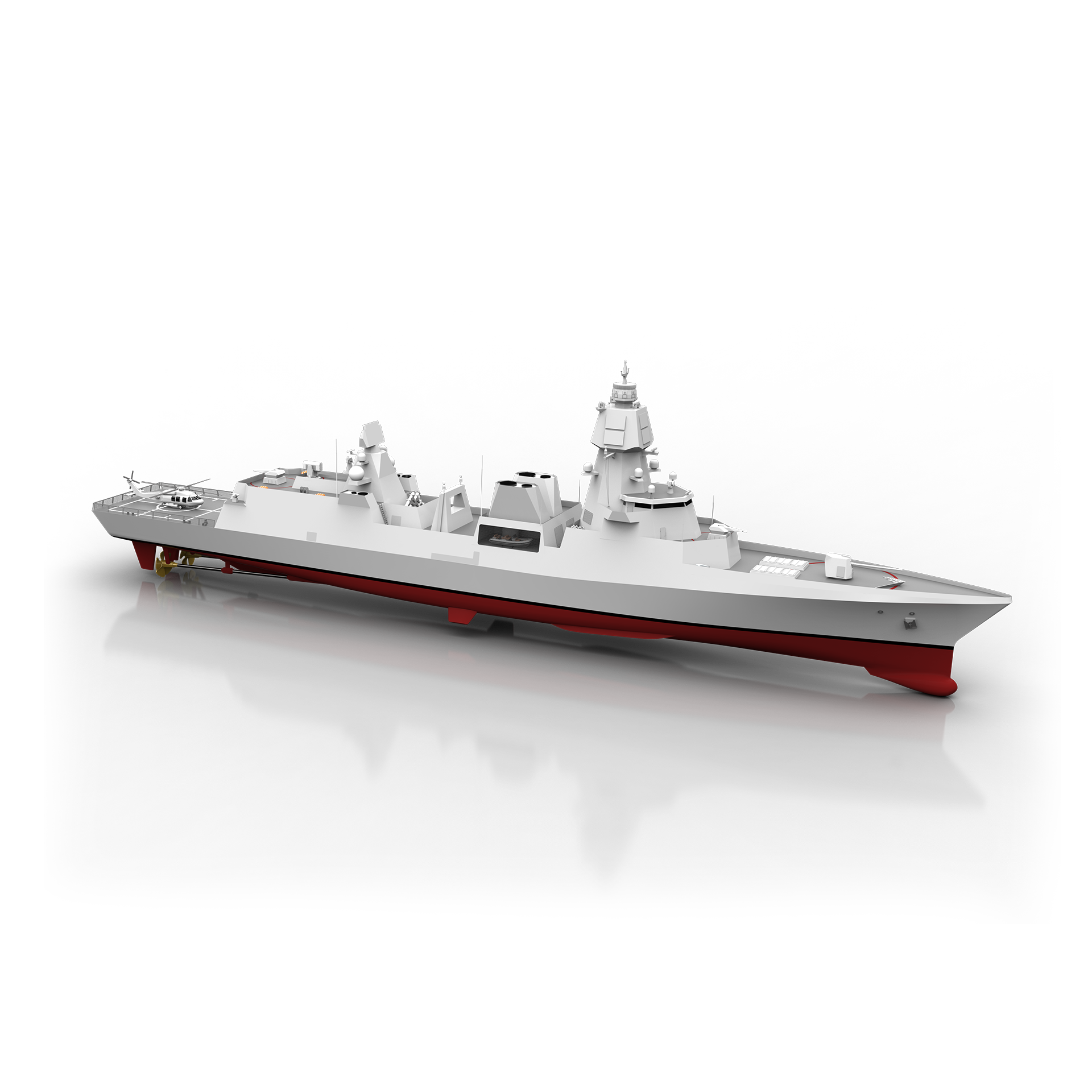

KM-F148 is a 148-meter air defense frigate designed for area air defense of friendly surface assets. With its long-range endurance, it provides a layered air defense umbrella on the fleet, a strong defense against submarines and surface threats.
Main Characteristics
Specification
Value
Overall Length
148 m
Beam
18.25 m
Displacement
5.500 Tons
Cruise Speed
18 Knots
Max Speed
30 Knots
Range @ 18 knots
5.000 NM
Propulsion & Power
System
Details
Main Propulsion & Maneuvering
2 x 23500 kW Gas Turbine
2 x 4300 kW Diesel Engine
2 x CPP
Power Generation
4 x 1800 kW Generator
Crew Capacity
35 Officers
108 Petty Officers
86 Ratings
Electronics
3D Search Radar
AESA Illuminating & Tracking Radars
F/C Radar
Navigation & LPI Radar
Hull Mounted Sonar
Weapons
1x127 mm Main Gun
1x Point Defence Missile System (PDMS)
2x4 SSM + Torpedo Launcher
2x24 SAM (VLS)
2x25 mm Remote Operated Gun
4 x 12.7 mm Stabilized Gun
Deck Systems
10 Tons Helicopter Platform
Hangar For Helicopter & UAV
Helicopter Handling & Transfer System
2 X RHIB
