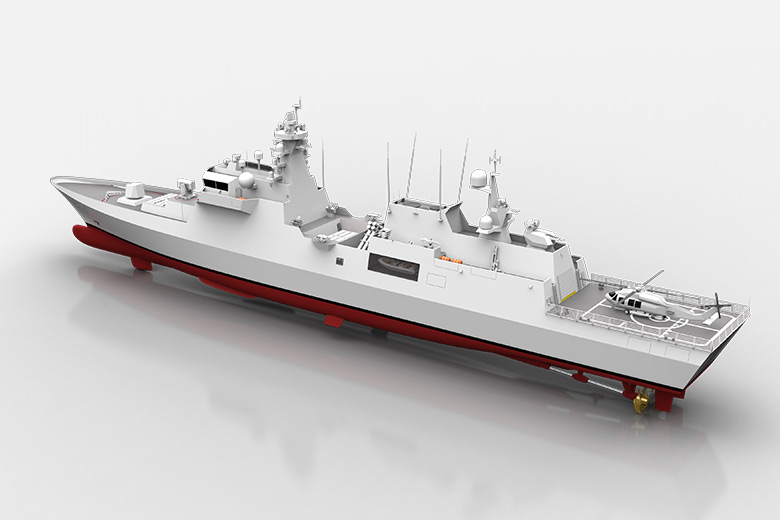

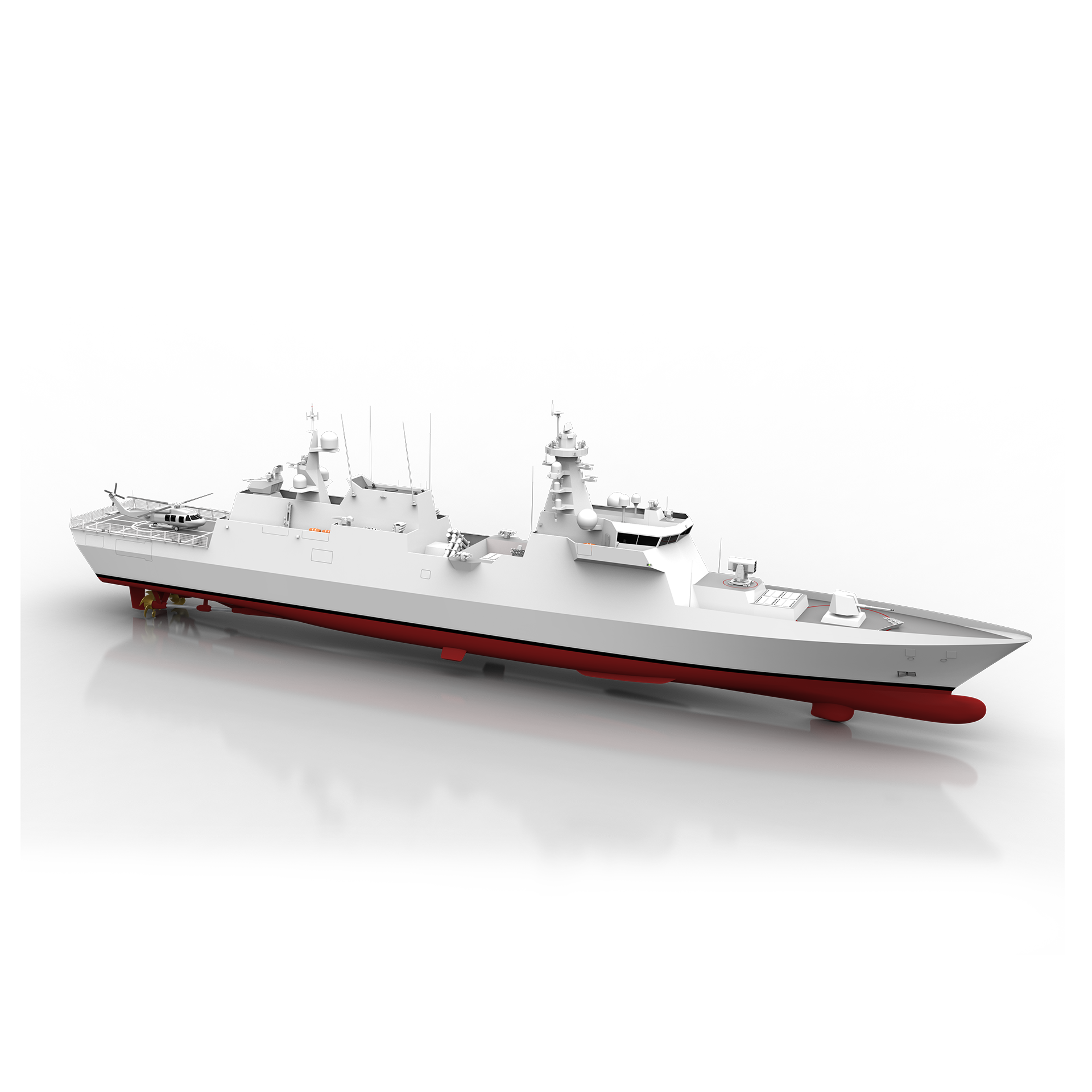

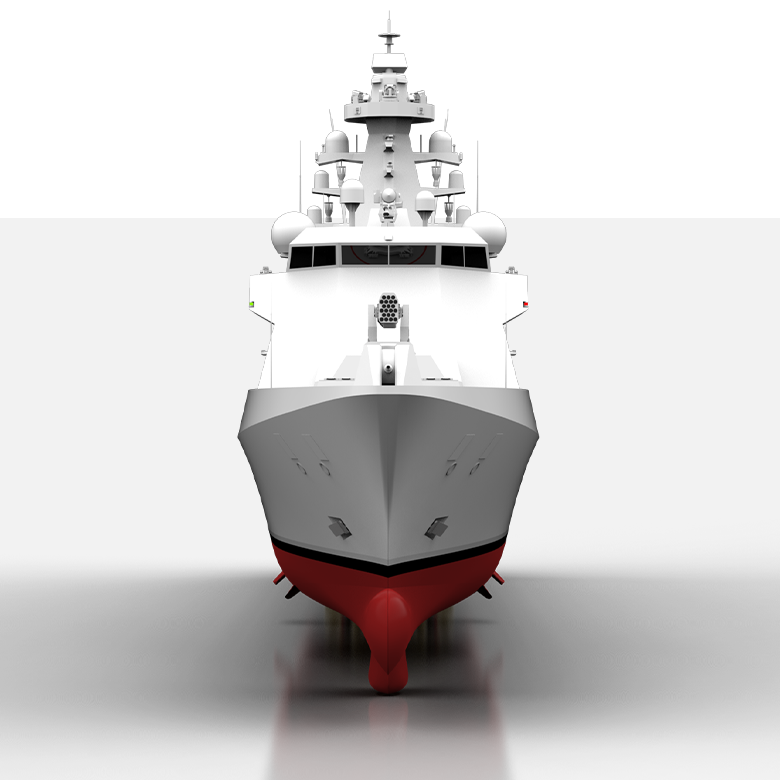

KM-F124 Multi Purpose Frigate
Long Reach Naval Presense. Multi-purpose Capabilities. Force Projection.
KM-F124 is designed for multi-purpose capabilities in surface warfare, air defense, anti-submarine warfare and special operations. It enables a strong naval presence at coastal and deep-blue regions.
Main Characteristics
Specification
Value
Overall Length
124 m
Beam
14.4 m
Displacement
3.680 Tons
Cruise Speed
18 Knots
Max Speed
29 Knots
Range @ 18 knots
4500 NM
Propulsion & Power
System
Details
Main Propulsion & Maneuvering
1 x 23500 kW Gas Turbine
2 x 7400 kW Diesel Engine
2 x CPP
Power Generation
4 x 1800 kW Generator
Crew Capacity
25 Officers
64 Petty Officers
36 Ratings
Electronics
3D Search Radar
Illuminating radar
F/C Radar
Navigation & LPI Radar
Hull Mounted Sonar
Weapons
1x127 mm Main Gun
1x Point Defence Missile System (PDMS)
2x4 SSM
Torpedo Launcher
2x25 mm Remote Operated Gun
2x32 SAM (VLS)
1 x Close-In Weapons System (CIWS)
Deck Systems
10 Tons Helicopter Platform
Hangar For Helicopter & UAV
Stern Door & Ramp For RHIB
