KM-C80 Multipurpose Corvette
High Operational Radius, Longer Naval Presence, Joint Interoperability

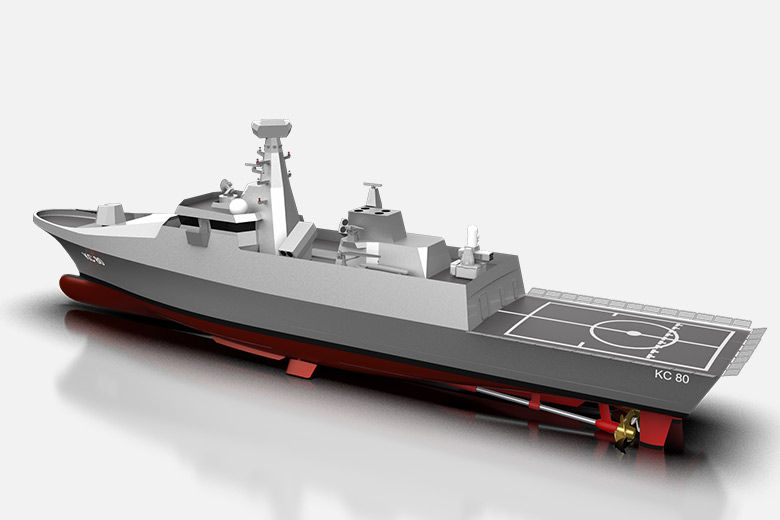

KM C80 is an 80.7-meter modern corvette designed for surface warfare, air defense, and coastal patrol operations. With long-range endurance and a compact configuration, it delivers a capable platform for multi-domain mission sets in constrained waters or EEZ operations.
Main Characteristics
Specification
Value
Overall Length
80.7 m
Beam
12.6 m
Displacement
1.700 Tons
Cruise Speed
15 Knots
Max Speed
24 Knots
Range @ 15 knots
4500 NM
Propulsion & Power
System
Details
Main Propulsion & Maneuvering
4x4300 kW Diesel Engine
Power Generation
3x750 kW Diesel Generator
Crew Capacity
15 Officers
54 Petty Officers
28 Ratings
Electronics
Fire Control Radar
3D Search Radar
LPI radar
Navigation Radar
Weapons
1 x 76 mm Main Gun
2 x 4 SAM (VLS) (optional)
2 x 4 SSM System
1 x Point Defence Missile System (PDMS)
2 x 12.7 mm Machine Guns
DECOY System
Deck Systems
Platform For Helicopter
Stern Ramp For 5 meter RHIB
