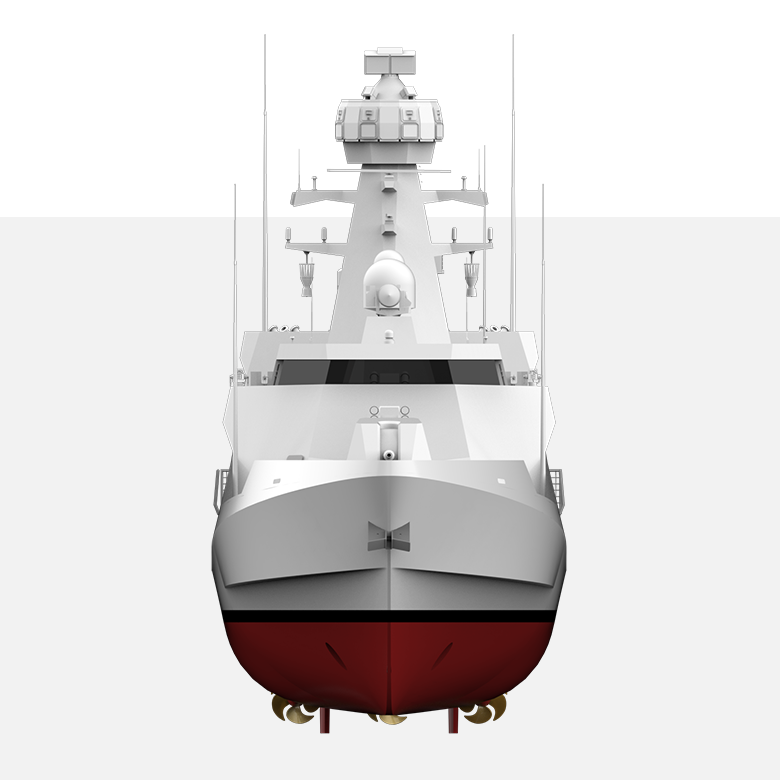

KM-C78 Missile Corvette
Economic. Compact Weapons Suite. Shallow water operations.
KM-C78 is designed for a budgetary solution for inland waters and coastal operations. With a balanced compact weapons suite, it provides anti-surface, air defense, anti-submarine and special operations capabilities. With medium-range endurance and a small size, it offers economic “fitted-for-but-not-with” solutions.
Main Characteristics
Specification
Value
Overall Length
78 m
Beam
11.4 m
Displacement
1300 Tons
Cruise Speed
14 Knots
Max Speed
24 Knots
Range @ 14 knots
2000 NM
Propulsion & Power
System
Details
Main Propulsion & Maneuvering
3 x 4300 kW Diesel Engine
3 x CPP
Power Generation
2 x 750 kW Generator
1 x 200 kW Emergency Generator
Crew Capacity
12 Officers
24 Petty Officers
24 Ratings
Electronics
Fire Control Radar
3D Search Radar
LPI radar
Navigation Radar
KU Band SATCOM
Weapons
1x76 mm Main Gun
2x4 SAM (VLS)
2x4 SSM System
1x Point Defence Missile System (PDMS)
2x12.7 mm Machine Guns
1xASW Rocket + 2 x Chaff
Deck Systems
Platform & Hangar For UAV
2 X 7 m RHIB
