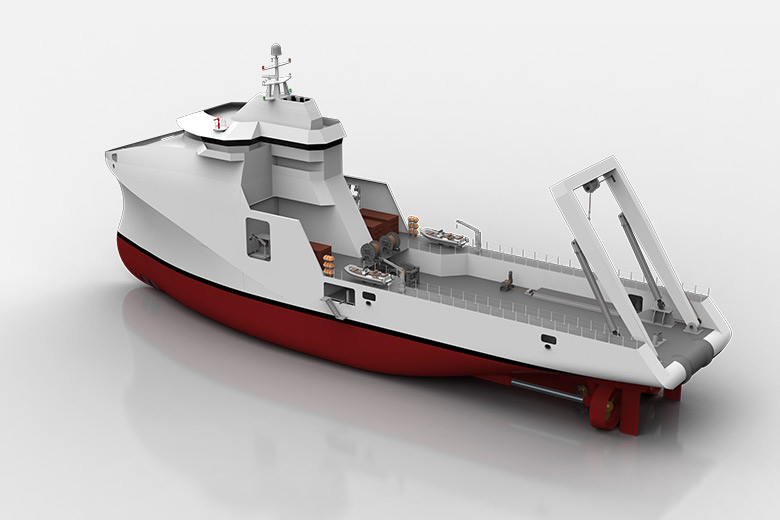

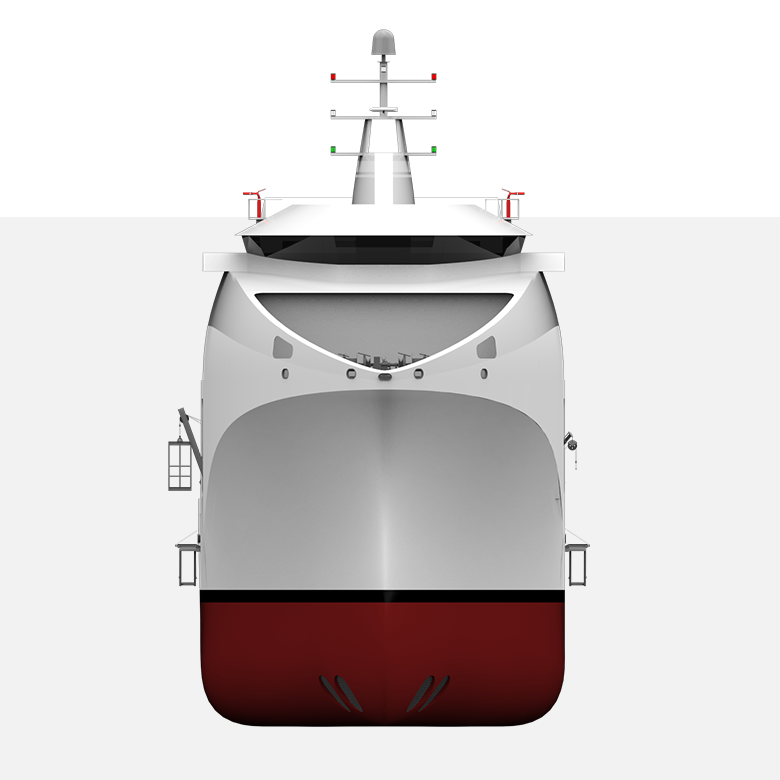

KM-ADR90 Naval Offshore Tug
Power to tow larger naval ships and recovery of large underwater or sunken structures
Versatile and robust, the KM-ADR90 Naval Offshore Tug combines powerful propulsion with advanced deck systems to deliver a multi-role platform. With strong seakeeping and dynamic positioning, it offers flexibility in towing, rescue, and underwater operations.
Main Characteristics
Specification
Value
Overall Length
90 m
Beam
20 m
Displacement
6,200 Tons
Cruise Speed
16 Knots
Max Speed
20 Knots
Range @ 16 knots
5760 NM
Propulsion & Power
System
Details
Main Propulsion & Maneuvering
2 x 9000 kW Diesel Engine
2 x CPP(Nozzle) 2 x 1000 kW Bow Thruster
1 x 1000 kW Stern Thruster
Power Generation
5 x 1300 kWe Diesel Generator
1 x 224 kWe Emg Diesel Generator
Crew Capacity
10 Officers
27 Petty Officers
33 Ratings
Deck Systems
1x100 Tons Towing Winch
2x2.5 Tons Boat Cranes
2x Fire Monitor (50m)
Diving & ROV
1x Hyperbaric Chamber Module
1x Double Containerized LARS (75m)
1x Diving Control and Nitrox Module
1x ROV (300m)
1x ROV Crane Module
1x Control and Storage Module
